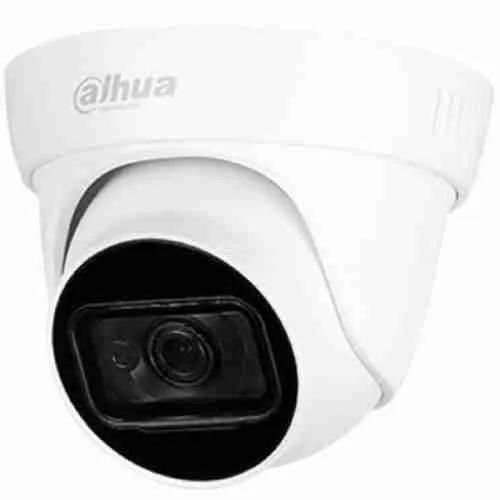

4MP HDCVI IR Eyeball Camera Dahua DH-HAC-HDW1400TL/TL-A specs

Image Sensor 1/2.7 inch CMOS
Effective Pixels 2560 (H)×1440 (V), 4MP
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
IR Distance 30m (98.42ft)
IR On/Off Control Auto; manual
IR LEDs Number 1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8mm; 3.6mm
Max. Aperture F2.0/F2.0
Angle of View
2.8mm: 115.0°×97.0°×52.0°
(diagonal×horizontal×vertical)
3.6mm: 89.5°×76.4°×41.6°
(diagonal×horizontal×vertical)
Iris Type Fixed iris
Close Focus Distance 0.8m (2.62ft)/1.4m (4.59ft)
DORI Distance
2.8mm:D:56m(184ft);O:22m(72ft);R:11m(36ft),I:6
m(20ft);
3.6mm:D:80m(262ft),O:32m(105ft),R:16m(52ft),I:8
m(26ft);
Video
Video Frame Rate
CVI:
PAL: 4M@25fp; 1080P@25fp
NTSC: 4M@30fp; 1080P@30fp
AHD:
PAL: 4M@25fp
NTSC: 4M@30fp
TVI:
PAL: 4M@25fp
NTSC: 4M@30fp
CVBS:
PAL: 960H
NTSC: 960H
Resolution 4M (2560×1440); 1080P (1920×1080); 960H (960×
576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
