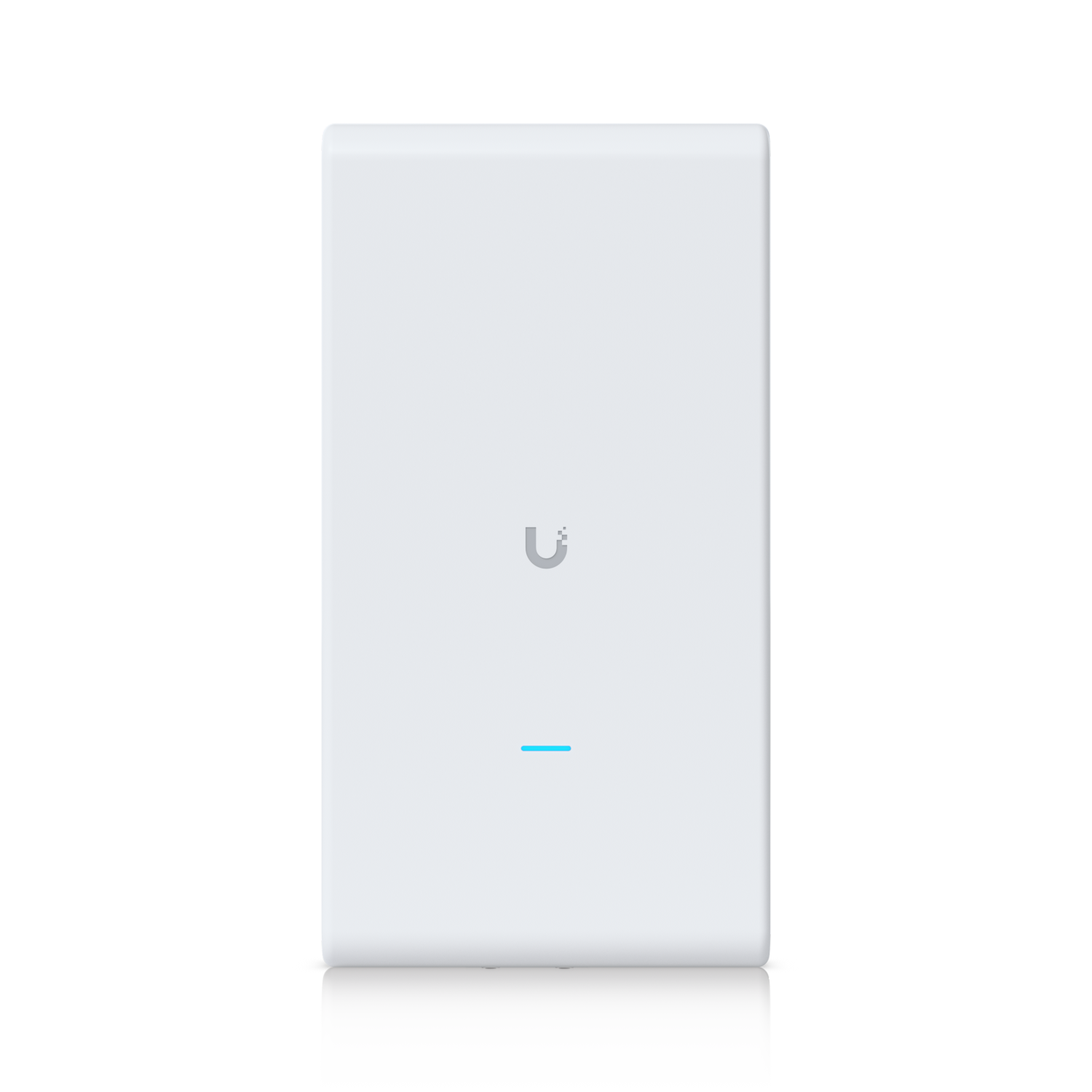

Ubiquiti UniFi UAP-AC-M-PRO Dual-Band Mesh Pro Outdoor WiFi Access Point

Buy Ubiquiti UAP-AC-M-PRO access point, a high-performance dual-band 802.11ac (WiFi 5) outdoor mesh access point engineered for enterprise, campus, hospitality, and large-area wireless deployments.
Built for long-range coverage, high client capacity, and outdoor durability, the UAP-AC-M-PRO delivers reliable mesh networking with speeds suitable for high-density environments.

With its rugged weather-resistant enclosure, dual-Gigabit Ethernet ports, and flexible PoE options, this UniFi Mesh Pro AP provides exceptional stability and easy installation on walls or poles. Manage and scale your wireless network effortlessly using the UniFi Network Controller or UniFi mobile app.

Key Features

• Weather-Resistant Outdoor Design
  Durable enclosure engineered to withstand harsh outdoor conditions for long-term deployments.
• Provisioning LED
  Unique LED indicator for easy device identification, location tracking, and administrator alerts.
• Powerful Long-Range Coverage
  Built-in dual-band omnidirectional antennas provide wide-area coverage ideal for outdoor hotspots, campuses, and event venues.
• Flexible Mounting Options
  Includes wall and pole mounting accessories for simple deployment in any outdoor environment.

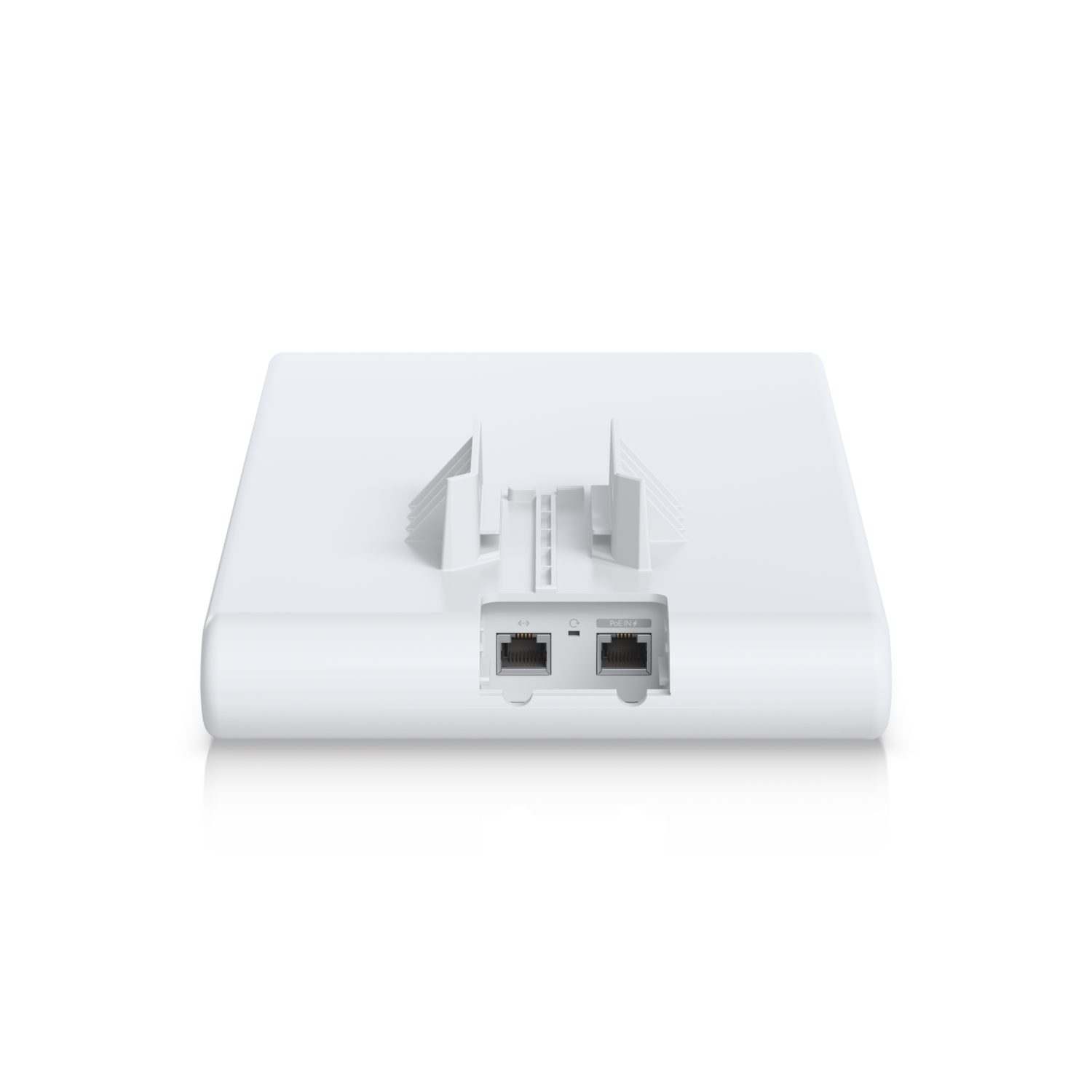

• Dual Gigabit Ethernet Ports
  Primary port supports data and PoE input; secondary port allows network bridging.
• Multiple Power Options
  Supports 802.3af PoE, UniFi PoE switches, or the included 48V Gigabit PoE adapter. (UniFi PoE Switch recommended.)

Technical Specifications

• Ubiquiti UAP-AC-M-PRO access point
• Dimensions: 343.2 × 181.2 × 60.2 mm (13.51 × 7.13 × 2.37 in)
• Weight: 633 g (1.40 lb)
• Networking Interface: (2) × 10/100/1000 Mbps Ethernet Ports
• Button: Reset
• Power Method: 802.3af PoE (44–57 VDC supported)
• Power Supply: 48V, 0.5A Gigabit PoE adapter included
• Max Power Consumption: 9 W
• Maximum TX Power:
  • 2.4 GHz: 22 dBm
  • 5 GHz: 22 dBm
• Antennas: (3) Internal dual-band antennas, 8 dBi
• WiFi Standards: 802.11a/b/g/n/ac (WiFi 5)
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Max BSSIDs: Up to 4 per radio
• Mounting: Wall or pole (pole kit included)

Performance

• Dual-Band WiFi 5 Throughput:
  Optimized for strong client performance across both 2.4 GHz and 5 GHz bands.
• High-Gain Internal Antennas:
  8 dBi antenna system ensures robust, far-reaching coverage.
• Enhanced Outdoor Mesh Networking:
  Ideal for large-area outdoor mesh systems where reliability and range are essential.
• Enterprise-Grade Wireless Security:
  Supports WPA-Enterprise, RADIUS authentication, and multiple SSIDs per radio.

Ideal For

• Outdoor enterprise WiFi deployments
• School campuses and university grounds
• Hotels, resorts, recreational areas, and hospitality environments
• Outdoor mesh networking for parks, stadiums, and event venues
• High-density outdoor hotspot installations
• Long-range outdoor coverage using UniFi’s scalable network architecture
