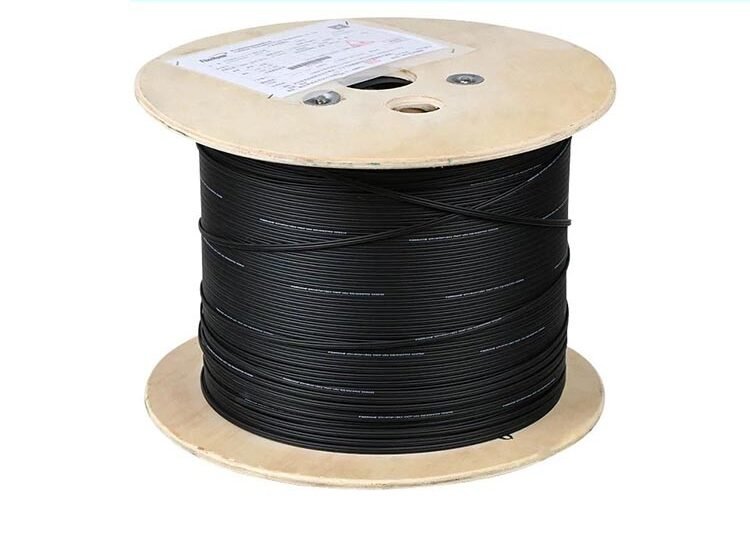

FIBER OPTIC ADSS 24F – 60M SPAN – 1 KM

The fiber optic 24F – 60 meters span is an outdoor fiber optic cable that is used when running fiber services from pole to pole, the span means the distance between the two supporting poles.

The 60 meter span classification therefore means that this cable is suitable for installation where the distance between two pole is not more than 60 meters.

Specifications:

Fiber Counts: 24

Cable Type: Single-mode

Fiber Type: G.652.D

Fiber Diameter: 9/123um

Jacket Diameter: LSZH

Cable Outer Diameter: 7.5 mm

Minimum Bending Radius: 10 times the cable outer diameter

Attenuation at 131- nm: 0.4 dB/km

Attenuation at 1550 nm: 0.3 dB/km

Operating Temperature: -40 degree Celsius C to +70 degree Celsius

Installation temperature: -10 degrees Celsius to +50 degree Celsius

Tensile Strength: 1000 N
