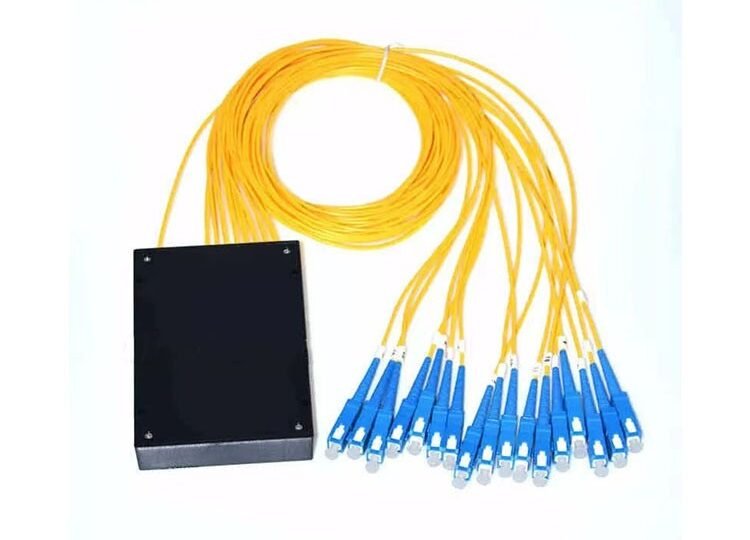

PLC Splitter 1 x 16 SC/UPC

PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, Its widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

Application

• FTTx Systems
• LAN,WAN and Metro Networks
• CATV systems

Specifications:

• Splitter Type: PLC (Planar Lightwave Circuit) Splitter
• Fiber Type: Single-mode (SM) G657A2
• Split Ratio: 1 x 16 (1 input, 16 output ports)
• Wavelength Range: 1260-1650nm
• Insertion Loss: ≤13.5dB
• Uniformity: ≤1.0dB
• Return Loss: ≥50dB
• Connector Type: SC/APC (Angled Physical Contact)
• Cable Type: 2.0mm ABS Box
• Cable Length: 1.5m (input and output ports)
• Operating Temperature: -40°C to +85°C
• Application: Suitable for various fiber optic network architectures and deployments.
