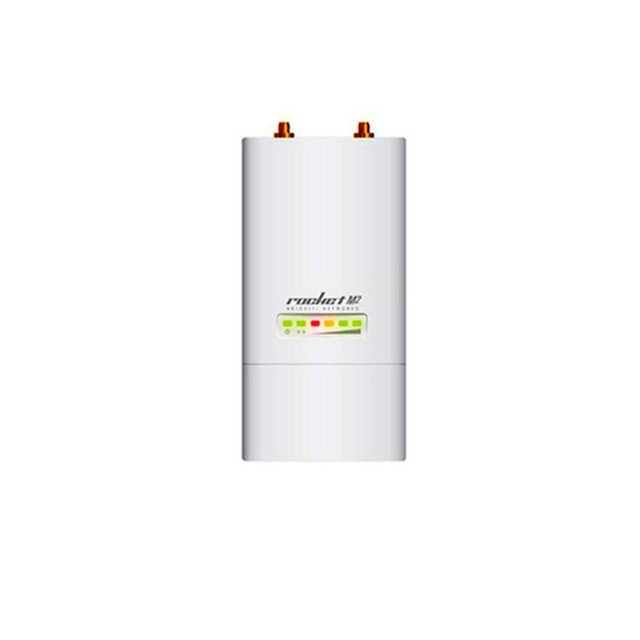

Ubiquiti Rocket M2 airMAX 2GHz ROCKETM2-US

Buy Ubiquiti Rocket M2 airMAX 2GHz from Tronik Gadgets Store and upgrade your outdoor wireless network with a powerful, reliable, and long-range 2.4GHz airMAX BaseStation. The Rocket M2 delivers 150+ Mbps real TCP/IP throughput and supports both Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) deployments. Built with a rugged UV-stabilized outdoor enclosure, it integrates seamlessly with airMAX antennas to create high-performance backhaul links, wireless ISP coverage, and long-distance bridging. Using airMAX TDMA technology, the Rocket M2 ensures superior scalability, low latency, and improved noise immunity—ideal for WISPs, enterprises, and rural connectivity projects.

Features

• airMAX TDMA Technology
  Uses Ubiquiti’s proprietary TDMA protocol to eliminate hidden-node issues, reduce latency, and improve network scalability.
• High-Power 2.4GHz Performance
  Supports 150+ Mbps throughput and long-range links of 50+ km when paired with the right airMAX antenna.
• Robust Outdoor Design
  Constructed with UV-stabilized plastic for durability in harsh weather conditions, ensuring reliable performance over time.
• Flexible Antenna Compatibility
  Works with all major airMAX antennas including RocketDish, Sector, Omni, and Yagi antennas using the plug-and-play Rocket mount.
• Simple PoE Installation
  Powered via 24V Passive PoE, allowing easy deployment even in remote outdoor environments.

Specifications

• Processor: Atheros MIPS 24KC, 400 MHz
• Memory: 64MB SDRAM, 8MB Flash
• Networking Interface: (1) 10/100 BASE-TX Ethernet (RJ45)
• Operating Frequency: 2.402 – 2.462 GHz (US Channels 1–11)
• Maximum Throughput: 150+ Mbps real TCP/IP throughput
• Range: 50+ km (depending on antenna/terrain)
• RF Connectors: (2) RP-SMA (Waterproof)
• Power Method: Passive PoE (Pairs 4,5+; 7,8 Return)
• Power Supply: 24V, 0.5A PoE Adapter (Included)
• Max Power Consumption: 6.5W
• Enclosure: UV-stabilized outdoor plastic
• Dimensions: 160 × 80 × 30 mm
• Weight: 0.5 kg (1.1 lb)
• Wireless Approvals: FCC Part 15.247, IC RS210, CE

Application Areas

1. Long-range Point-to-Point (PtP) bridging between buildings, towers, or remote sites.
2. Point-to-MultiPoint (PtMP) base stations for WISP last-mile connectivity.
3. Rural broadband distribution where fiber is unavailable.
4. Enterprise outdoor wireless networks for campuses, industrial facilities, and farms.
5. High-capacity CCTV/IP surveillance backhaul over long distances.
