Description

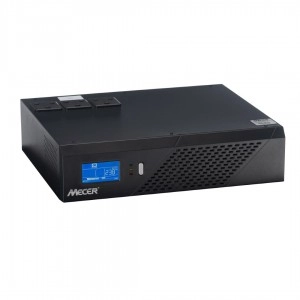

SOL-I-AX-3M-24 MECER HYBRID 3000VA / 2400W Inverter specs
Specifications and features |
|
| Product Code | SOL-I-AX-3MPLUS24 |
| Model | Axpert MKS 3K-24 Plus |
| RATED POWER | 3000VA/2400W |
| INPUT | |
| Voltage | 120 VAC or 230 VAC |
| Selectable Voltage Range | 95-140 VAC or 170-280 VAC (For Personal Computers) |
| 65-140 VAC or 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 110/120 VAC ± 5% (User selectable) or 230VAC ± 5% |
| Surge Power | 6000VA |
| Efficiency (Peak) | 90% – 93% |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 31 VDC |
| Maximum Charge Current | 20 A or 20 A / 30 A |
| SOLAR CHARGER | |
| Maximum PV Array Power | 1500 W |
| MPPT Range @ Operating Voltage | 30~ 115 VDC or 60 ~ 115 VDC |
| Maximum PV Array Open Circuit Voltage | 145 VDC |
| Maximum Charging Current | 60A |
| Maximum Efficiency | 0.98 |
| Standby Power Consumption | 2 W |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 140 x 295 x 479 |
| Net Weight (kgs) | 11.5 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | -15°C – 60°C |
