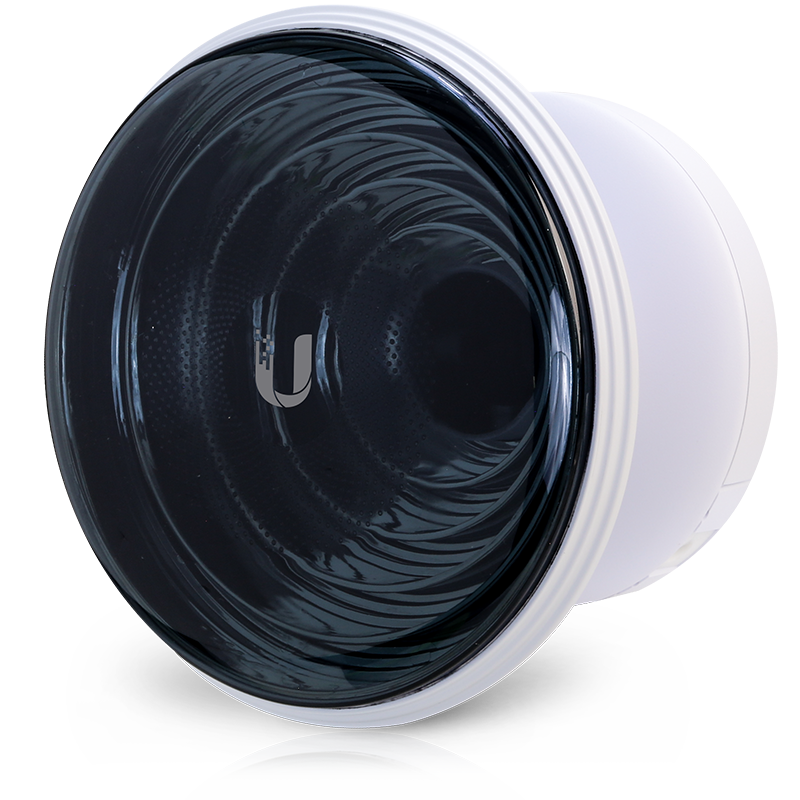

Ubiquiti airMAX IsoStation M5 (IS-M5)

Buy Ubiquiti airMAX IsoStation M5 from Tronik Gadgets Store in Kenya. The IsoStation M5 is a high-performance 5 GHz CPE from Ubiquiti’s airMAX family, designed for long-range wireless connectivity with modular, interchangeable horn antennas. It delivers up to 150+ Mbps throughput while minimizing interference through advanced beam isolation technology, making it ideal for high-density networks.

Features

• High-Performance CPE: Operates on the 5 GHz band for fast, reliable wireless links
• Interchangeable Horn Antenna: 14 dBi, 45° beamwidth; modular design allows antenna replacement for optimized beam-shaping
• Compact & Lightweight: Maximizes gain in a small footprint for versatile deployment
• Enhanced Co-location Performance: Unique beam isolation enables higher sector density without signal interference
• Passive PoE Powered: Simplifies installation with single-cable power and data delivery
• Durable Outdoor Design: Aluminum base and UV-stabilized plastic ensure long-term reliability in harsh environments
• NDAA Compliant: Ensures compatibility with regulatory standards

Specifications

• Frequency Band: 5 GHz
• Throughput: Up to 150+ Mbps
• Antenna Gain: 14 dBi (default horn)
• Beamwidth: 45° (default horn)
• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE 2-pair (Pairs 4, 5+; 7, 8 return)
• Power Supply: 24V, 0.5A Gigabit PoE adapter (included)
• Supported Voltage Range: 22–27V DC
• Max Power Consumption: 6.5W
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% non-condensing
• Dimensions: With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9″); Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6″)
• Weight: With horn: 726 g (1.6 lb); Without horn: 408 g (0.9 lb)
• Wind Loading: 36N @ 200 km/h (8.09 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Operating Frequency: Worldwide 5150–5875 MHz; USA: U-NII-1 (5150–5250 MHz), U-NII-3 (5725–5850 MHz)

Applications

• Point-to-Point & Point-to-Multipoint Links: High-speed CPE for remote or distributed networks
• Outdoor Wireless Networks: Ideal for ISP deployments, campus networks, and high-density installations
• High-Density Deployments: Horn antenna design allows multiple sectors without interference
• Flexible Network Expansion: Modular design supports future upgrades or beam optimization
• Rugged Environments: Suitable for extreme weather and outdoor conditions
