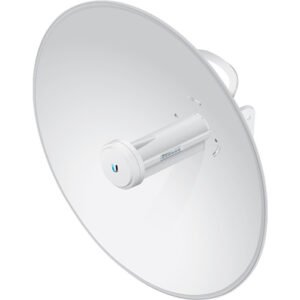

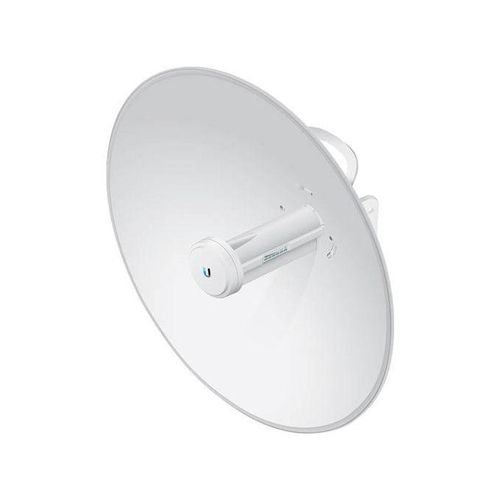

Ubiquiti Networks PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge

Buy Ubiquiti PBE-5AC-500 PowerBeam ac High-Performance airMAX Bridge from Tronik Gadgets Store for long-range, high-throughput outdoor wireless connectivity. Designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) deployments, this bridge delivers 450+ Mbps throughput over distances exceeding 25 km (16+ miles). Featuring airMAX ac technology and InnerFeed integrated radio design, the PBE-5AC-500 ensures low latency, high scalability, and improved noise immunity. Its rugged construction allows reliable operation in harsh weather, making it ideal for ISPs, enterprises, and outdoor network projects.

Features

• High Throughput
  Achieves speeds of 450+ Mbps, supporting bandwidth-intensive applications like 4K streaming, VoIP, and cloud services.
• Extended Range
  27 dBi directional antenna with a 500 mm reflector dish enables reliable long-distance links exceeding 25 km (16+ miles).
• airMAX ac Technology
  Proprietary TDMA protocol ensures optimal latency, throughput, and scalability, while enhanced beam directivity improves performance in noisy RF environments.
• Integrated InnerFeed Design
  Radio integrated into the antenna feedhorn eliminates cable losses and simplifies installation.
• Durable Outdoor Construction
  UV-stabilized plastic enclosure with resistance to wind (up to 200 km/h / 125 mph), extreme temperatures (-40 to 70°C), salt fog, and vibration.
• Advanced airOS v7 Software
  Provides an HTML5 interface, live RF diagnostics, airView spectrum analysis, and seamless network optimization.
• Power over Ethernet (PoE)
  Includes a 24V, 0.5A Gigabit PoE adapter, delivering power and data over a single cable.
• Dedicated Management Radio
  Separate Wi-Fi radio allows easy out-of-band management using the UMobile app, simplifying configuration and alignment.
• Flexible Mounting
  Pole-mount bracket allows 20° uptilt, 10° downtilt, and ±15° tilt adjustment for precise alignment.

Specifications

• Dimensions: 520 × 520 × 308 mm (without radome)
• Weight: 2.35 kg (without radome)
• Mounting: Pole-mount kit included
• Wind Survivability: 200 km/h (125 mph)
• Enclosure: UV-stabilized outdoor plastic

Hardware

• Processor: Atheros MIPS 74Kc, 720 MHz
• Memory: 128 MB DDR2, 8 MB Flash
• Networking Interface: (1) 10/100/1000 Ethernet port
• Max Power Consumption: 8.5 W
• Power Method: Passive PoE (24V, 0.5A adapter included)

System

• Frequency Range: 5150–5875 MHz (Worldwide)
• Antenna Gain: 27 dBi
• Polarization: Dual Linear
• Channel Widths: 10/20/30/40/50/60/80 MHz (PtP), 10/20/30/40 MHz (PtMP)
• TDMA airMAX Protocol: Low-latency, high-throughput multi-point communication
• NDAA Compliant: Yes
• Tested for: Salt fog, vibration, wind-driven rain, UV exposure

Application Areas

1. Long-range Point-to-Point (PtP) links for connecting remote buildings or campuses.
2. Internet Service Provider (ISP) backhaul to extend internet access to rural or underserved areas.
3. Outdoor enterprise network connectivity across multiple locations.
4. Surveillance and CCTV network backhaul for high-bandwidth video streams.
5. High-capacity Point-to-Multipoint (PtMP) deployments requiring low-latency, high-throughput connections.
