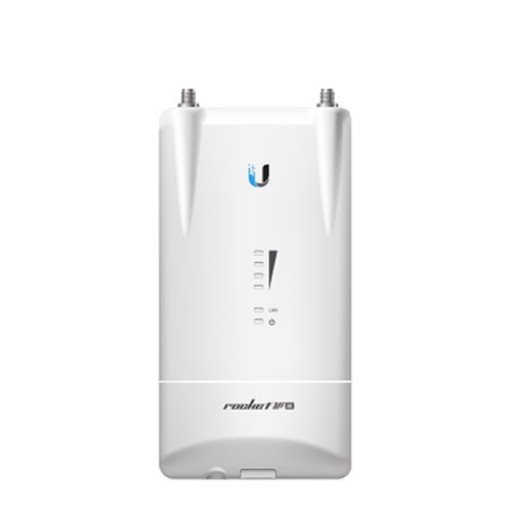

Ubiquiti Rocket 5AC Lite (R5AC-Lite)

Buy Ubiquiti Rocket 5AC Lite from Tronik Gadgets Store for fast, reliable, and long-distance outdoor wireless connectivity. The Ubiquiti Rocket 5AC Lite is a high-performance 5GHz airMAX ac BaseStation built for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links, delivering real-world speeds of 500+ Mbps. Designed with a rugged UV-stabilized outdoor enclosure, it pairs with airMAX antennas to create powerful, scalable, and carrier-grade wireless networks. The Rocket 5AC Lite uses airMAX ac technology for improved throughput, lower latency, and better noise immunity—ideal for ISPs, enterprises, and surveillance backhaul.

Features

• High-Speed airMAX ac Performance
  Delivers up to 500+ Mbps throughput using advanced airMAX ac technology for improved noise filtering and low latency.
• 5GHz Long-Range Connectivity
  Operates in the 5150–5875 MHz range, suitable for long-distance wireless bridge and base-station deployments.
• Seamless Antenna Integration
  Features (2) RP-SMA waterproof RF connectors for quick plug-and-play use with RocketDish and sector antennas.
• Robust Outdoor Enclosure
  Built with UV-stabilized plastic for all-weather durability and stable long-term outdoor performance.
• Efficient Power over Ethernet
  Supports 24V Passive PoE, reducing cable runs and simplifying installation in remote outdoor sites.

Specifications

• Processor: Atheros MIPS 74Kc, 720 MHz
• Memory: 128MB DDR2 RAM, 16MB NOR Flash
• Networking Interface: (1) 10/100/1000 Mbps Gigabit RJ45
• RF Connections: (2) RP-SMA (Waterproof)
• Maximum Throughput: 500+ Mbps
• Power Method: 24V Passive PoE (Pairs 4,5+; 7,8 return)
• Power Consumption: 8.5W max
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Operating Frequency: 5150 – 5875 MHz
• Dimensions: 162 × 84 × 37 mm
• Weight: 250 g
• Enclosure: Outdoor UV-stabilized plastic
• Humidity: 5% – 95% non-condensing
• ESD/EMP Protection: Air/Contact ±24kV
• NDAA Compliant: Yes

Application Areas

1. Long-range Point-to-Point (PtP) links connecting buildings, towers, and remote sites.
2. Point-to-MultiPoint (PtMP) base stations for WISPs delivering last-mile broadband.
3. CCTV and IP surveillance backhaul for transmitting HD video across large distances.
4. Rural and remote broadband distribution where fiber infrastructure is unavailable.
5. Outdoor enterprise connectivity for campuses, estates, hotels, and industrial facilities.
