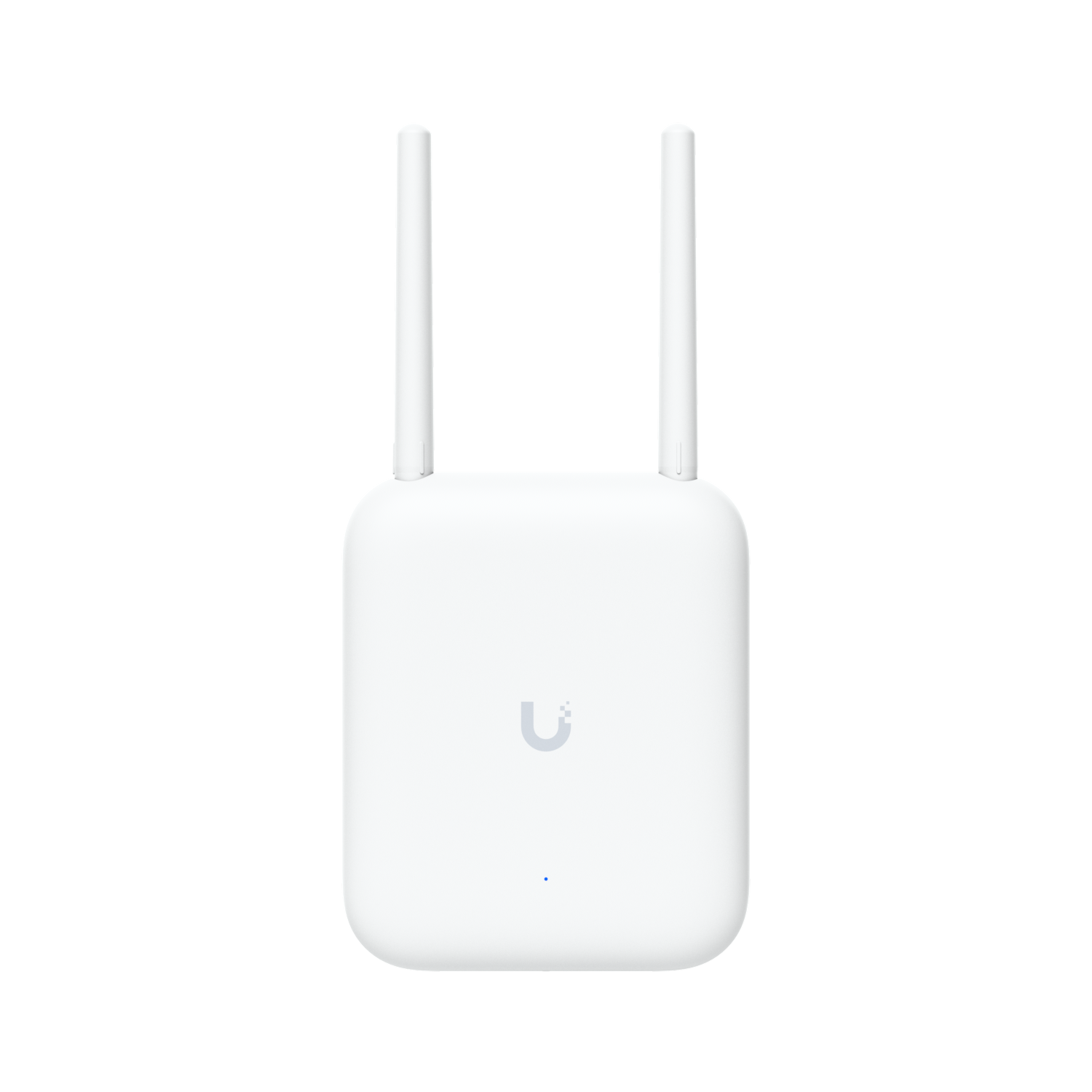

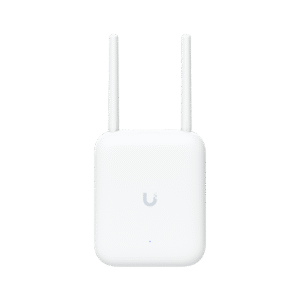

Ubiquiti U7-Outdoor Wireless Access Point

Buy Ubiquiti U7-Outdoor Wireless Access Point in Kenya, a powerful WiFi 7 (802.11be) access point built for high-performance outdoor connectivity. Designed to deliver ultra-fast speeds, long-range coverage, and enterprise-grade reliability, the U7-Outdoor is ideal for hotels, schools, campuses, enterprises, and industrial environments.

With a 2.5 GbE uplink, IPX6 weatherproofing, and coverage up to 465 m² (5,000 ft²), this model offers exceptional performance, even in challenging outdoor conditions. The directional internal and external omni antennas ensure strong and flexible signal coverage for a wide range of outdoor applications.

Key Features

• WiFi 7 (802.11be) performance with up to 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz) throughput
• 4 spatial streams (2×2 MIMO) on both 2.4 GHz and 5 GHz bands
• 465 m² (5,000 ft²) coverage with support for 250+ concurrent clients
• 2.5 GbE uplink port for multi-gigabit backhaul
• PoE+ powered (42.5–57 V DC), maximum power consumption 19W
• Wall or pole mountable, mounts included
• IPX6 weatherproof design for reliable outdoor deployment
• Dual antenna system with internal directional and external omni antennas
• Centralized management through UniFi Network Controller or UniFi mobile app

Technical Specifications

• Ubiquiti U7-Outdoor
• WiFi Standard: WiFi 7 (802.11be)
• Dimensions: 170 × 208 × 54.5 mm (6.7 × 8.2 × 2.1 in)
• Coverage Area: 465 m² (5,000 ft²)
• Maximum Client Count: 250+
• Uplink: 1 × 2.5 GbE RJ45 port
• Mounting: Wall or Pole (mounts included)
• Weatherproof Rating: IPX6
• Power Method: PoE+ (42.5–57 V DC)
• Maximum Power Consumption: 19 W
• Weight: 1.2 kg (2.6 lb)
• Operating Temperature: –30 to 60 °C (–22 to 140 °F)
• Operating Humidity: 5 – 95% non-condensing
• Certifications: CE, FCC, IC, Anatel
• NDAA Compliant: Yes

Performance

• Spatial Streams: 4 (2×2 @ 2.4 GHz + 2×2 @ 5 GHz)
• MIMO Configuration:
  • 5 GHz – 2×2 (DL/UL MU-MIMO)
  • 2.4 GHz – 2×2 (DL/UL MU-MIMO)
• Maximum Data Rate:
  • 5 GHz – 4.3 Gbps (BW240)
  • 2.4 GHz – 688 Mbps (BW40)
• Antenna Gain:
  • 5 GHz Directional Internal: 12.5 dBi (45° × 45°)
  • 5 GHz External Omni: 4 dBi (360° × 30°)
  • 2.4 GHz Directional Internal: 8 dBi (90° × 90°)
  • 2.4 GHz External Omni: 3 dBi (360° × 30°)
• Maximum TX Power:
  • 5 GHz – 26 dBm
  • 2.4 GHz – 23 dBm
• Maximum BSSIDs: 8 per radio
• Channel Bandwidths: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz

Supported Data Rates

• 802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps – 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps – 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160)
• 802.11n (WiFi 4): 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40)

Features

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management
• Advanced Radio Management
• Passpoint (Hotspot 2.0)
• Captive Portal with Custom Branding, Voucher and Payment Login
• Guest Network Isolation
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Scheduling
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-Assigned VLAN

Hardware

• Power Input: 42.5–57 V DC via PoE+
• Networking Interface: 1 × 2.5 GbE RJ45 port
• Antennas: 1 Directional Internal, 2 External Omni
• Antenna Beamwidth: 5 GHz – 45°; 2.4 GHz – 90°
• Pole Mount Diameter: 25–60 mm (1–2.36 in)
• Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Enclosure Material: UV-stabilized polycarbonate and aluminum alloy
• Mount Material: Polycarbonate and SGCC steel
• LED Indicators:
  • Power: White/Blue
  • System: White/Blue
  • Mesh Signal: Blue (4 LEDs)

Software and Management

• Controller: UniFi Network (version 8.2.93 or later)
• Management: Ethernet or Cloud via UniFi Controller
• Mobile App Support: iOS and Android (latest versions)
• Authentication Options: Voucher, Password, RADIUS, External Portal

Operating Frequencies

• US/Canada:
  2400–2472 MHz, 5150–5250 MHz, 5250–5350 MHz, 5470–5725 MHz, 5725–5850 MHz
• Worldwide:
  2400–2483.5 MHz, 5150–5725 MHz

Ideal For

• Outdoor WiFi networks for businesses, schools, and campuses
• Hotels, resorts, and hospitality environments
• Industrial sites and surveillance systems
• Large-scale enterprise outdoor connectivity

Get Ubiquiti U7-Outdoor WiFi 7 Access Point at the best price in Kenya from TDK Solutions — your trusted supplier for Ubiquiti Access Points, UniFi Network Controllers, and network installation support.
Enhance your connectivity with high-speed outdoor WiFi 7, advanced security, and scalable UniFi management.

View Installation Guide for Ubiquiti U7-Outdoor Access Point
