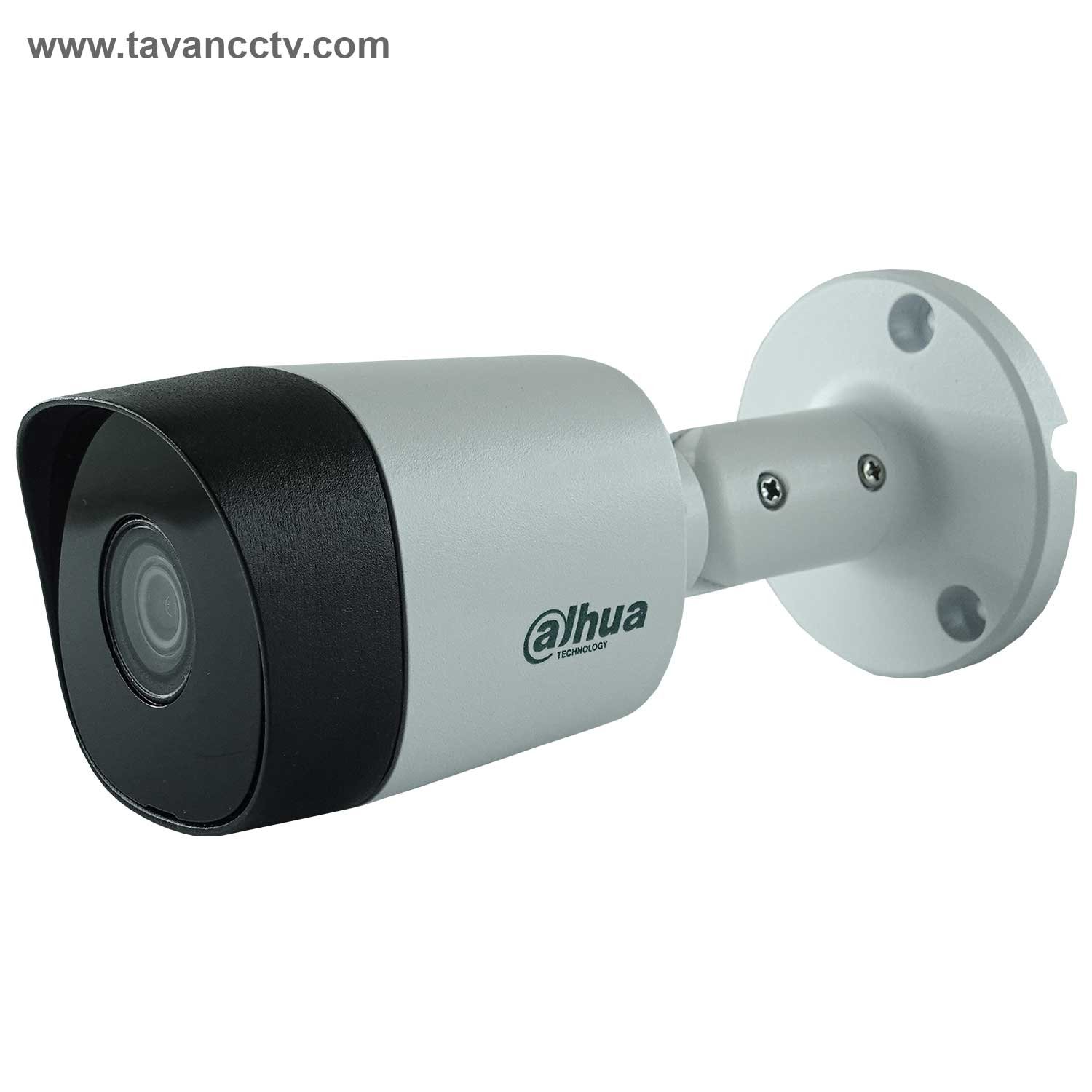

4MP AHD Bullet Camera Dahua DH-HAC-B2A41 HDCVI IR
KSh 3,100.00
Max. 30fps@4MP
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm,6mm optional)
· Max. IR length 20m, Smart IR
· IP67, DC12V
4MP AHD Bullet Camera Dahua DH-HAC-B2A41 HDCVI IR specs
-
Image Sensor 1/2.7″ CMOS Effective Pixels 2560(H)×1440(V), 4MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F2.0, 30IRE, 0Lux IR on S/N Ratio More than 65dB IR Distance Up to 20m (66feet) IR On/Off Control Auto / Manual Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 3.6mm (2.8mm, 6mm Optional) Max Aperture F2.0 Angle of View 2.8mm::125° x105° x56° (diagonal x horizontal x vertical) 3.6mm: 107° x 89° x 48° (diagonal x horizontal x vertical) 6mm: 61° x 54° x 31° (diagonal x horizontal x vertical) Focus Control N/A Close Focus Distance 2.8mm:0.7m(2.3 ft) 3.6mm:1.1 m (3.6 ft) 6mm: 2.7 m (8.9 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8mm 49.8 m (163.0 ft)
19.9 m (65.0 ft)
10.0 m (33.0 ft)
5.0 m (17.0 ft)
3.6mm 64.0 m (210.0 ft)
25.6 m (84.0 ft)
12.8 m (42.0 ft)
6.4 m (21.0 ft)
6mm 106.7 m (350.0 ft)
42.7 m (140.0 ft)
21.3 m (70.0 ft)
10.7 m (32.0 ft)
Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° Video Resolution 4MP (2560×1440) Frame Rate 25/30fps@4MP,25/30fps@1080P Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface Audio Interface N/A Eelectrical Power Supply 12V DC ±30% Power Consumption Max. 3.7W (12V DC, IR on) Environmental Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Ingress Protection & Vandal Resistance IP67 Construction Casing Aluminium Dimensions 69.8mm×69.8mm×157.6mm (2.75″×2.75″×6.20″) Net Weight 0.24kg (0.53lb) Gross Weight 0.29kg (0.64lb)
