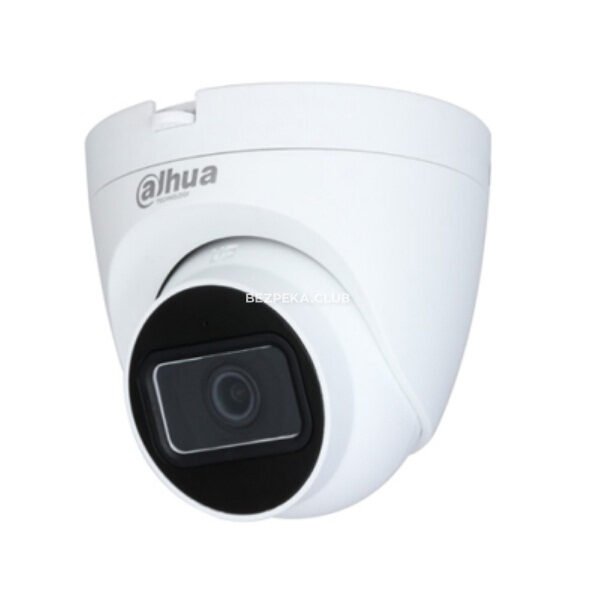

2MP HDCVI Quick-to-install IR Eyeball Camera Dahua DH-HAC-HDW1200TQ(-A) specs

Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 1920(H)×1080(V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
Min. Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.9
Field of View
2.8 mm: 119° x 101° x 54°
(diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45°
(diagonal x horizontal x vertical)
6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical)
Iris Type Fixed iris
Close Focus Distance
2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)
6 mm: 2 m (6.6 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
(25.3 ft)
3.9 m
(12.8 ft)
3.6 mm 49.7 m
(163.1 ft)
19.9 m
(65.3 ft)
9.9 m
(32.5 ft)
5 m
(16.4 ft)
6 mm 82.8 m
(271.7 ft)
33.1 m
(108.6 ft)
16.6 m
(54.5 ft)
8.3 m
(27.2 ft)
Video
Frame Rate
CVI: 1080P@25/30fps; 720P@25/30fps;
720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps;
720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×
576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
