Fiber FTTX ADSS 48F Cable Per KM – 100 Meters Span

Fiber optic ADSS is an aerial fiber optic cable designed for outdoor installations that require the distribution of optical signals over long distances between different locations.

Specification

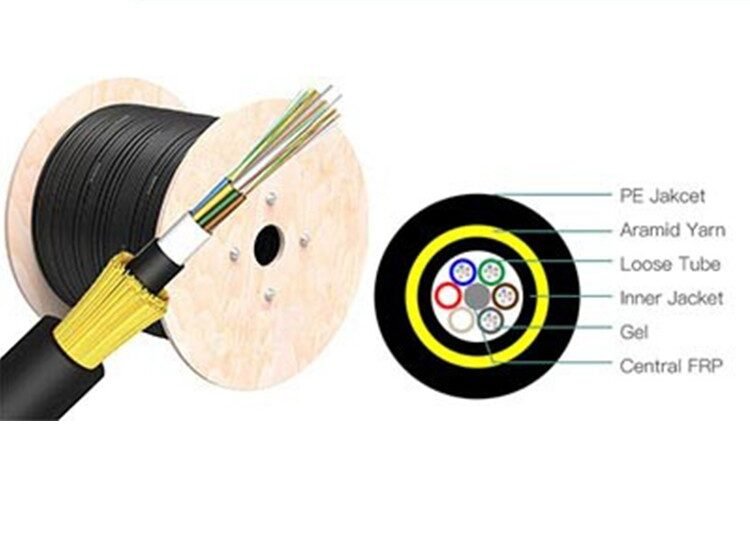

1. Cable Type: The ADSS 48 F is a loose tube cable, which means that the fibers are contained within individual tubes within the cable.
2. Fiber Count: This particular ADSS cable has 48 fibers, which means that it can transmit and receive data from up to 48 different locations.
3. Cable Length: The ADSS 48 F is available in various lengths depending on the requirements of the installation.
4. Outer Jacket: The cable is protected by a weather-resistant outer jacket made of high-density polyethylene (HDPE), which provides protection against moisture, sunlight, and other environmental factors.
5. Fiber Type: The ODSS 48 F uses single-mode fibers (SMF) which allow for high-speed data transmission over long distances.
6. Cable Strength: The ODSS 48 F has a high strength-to-weight ratio, making it suitable for use in areas with high wind speeds or other environmental factors that could put stress on the cable.
7. Installation: The ADSS 48 F can be installed using various methods, including aerial, lashed, or self-supporting.
8. Operating Temperature: The ADSS 48 F can operate in temperatures ranging from -40°C to +70°C, making it suitable for use in a wide range of environments.
9. Tensile Strength: The ADSS 48 F has a maximum tensile strength of 6000N, which allows it to withstand the stresses of outdoor installations.
10. Crush Resistance: The ADSS 48 F has a crush resistance of 3000N/100mm, which provides protection against damage from heavy objects or other external forces.
11. Fiber Color Coding: The fibers in the ODSS 48 F are color-coded for easy identification and installation.
12. Water Blocking: The ADSS 48 F has a water-blocking feature that prevents water from entering the cable, reducing the risk of damage to the fibers.

The ADSS 48 F is a high-quality and reliable fiber optic cable suitable for outdoor installations that require high-speed data transmission over long distances. Its durable construction, resistance to environmental factors, and high fiber count make it an excellent choice for a range of applications.
