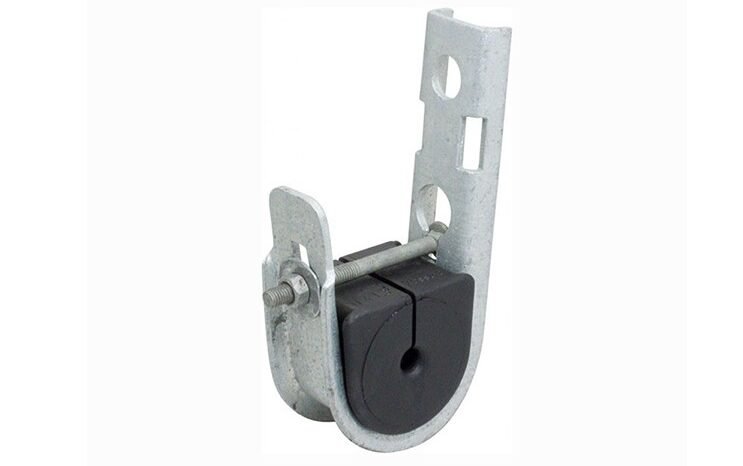

J-Hook Suspension Clamp for ADSS Cable 15-20 mm

ADSS J Hook suspension Clamp 15-20mm designed to suspend ADSS round optical fiber cable during construction  of transmission line. The clamp consists of plastic insert ,which clamp the cable without damaging. A wide range of gripping capabilities and mechanical resistance archived by wide product range, with different size of neoprene inserts. The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets.

Main Features:

• Installation in just a few seconds with a 13mm standard 6 point spanner
• The shape of the J Hook allows a running out of the cable directly in the hook.
• The suspension clamps can be directly secured to the poles using bolts or bandings.

They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.

specification

1. Material: Aluminum + Rubber insert
2. Packaging Requirements: Carton $ 50 pcs/cartons
3. Total weight: 620kg/800kg
4. specific parameter: 15~20mm
5. Processing Technology: Forming
