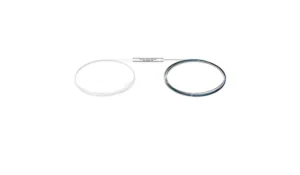

Single Mode Coated Bare Fiber splitters 1*4
The single Mode coated Bare Fiber Optic PLC Splitters is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical from central office to multiple premise locations.
Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device
SPECIFICATIONS:
- Product Name: Single Mode Coated Bare Fiber splitters (1*4)
- Split Ratio: 1:4 (One input fiber port and eight output fiber ports)
- Operating Wavelength: 1260nm-1650nm
- Insertion Loss: ≤10.5dB
- Uniformity: ≤0.8dB
- Polarization Dependent Loss: ≤0.2dB
- Directivity: ≥55dB
- Operating Temperature: -40°C to +85°C
- Fiber Type: Compatible with single-mode fiber and polarization-maintaining fiber
- Connector Type: SC/APC, SC/UPC, FC/APC, FC/UPC, or LC connectors
- Package Type: Steel tube, ABS box, or LGX module
- Certifications: RoHS and ISO 9001 compliant
Note: The specifications may vary based on the manufacturer and the specific requirements of the installation. It’s important to consult with the manufacturer to ensure that the fiber splitter meets your specific needs.
