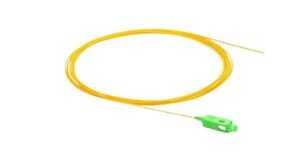

Single Mode pigtails SC/APC – 1.5 meters

The Simplex SC/APC 9/125 Single-mode Fiber Optic Pigtails provide a fast way to make communication devices in the field. The Simplex SC/APC 9/125 Single-mode Fiber Optic Pigtail  are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Applications:

  •  10GB/s high speed LAN Network

•  Telecommunication networks

•  Local area networks (LANs)

•  Wide area networks (WANS)

•  High speed and legacy networks with Gigabit & Fast Ethernet

•  Supports video, data and voice service

Specification

Fiber Type:  Single Mode (G.652.D, G.657A1, G.657A2)

Insertion loss(dB):  ≤0.2

Temperature(C):  -40~+80

Repeatability(dB):   ≤0.1

Durability: ≥ 1,000

Return loss(dB):  PC≥45, UPC≥50, APC≥65

Cable diameter(mm):   Ø3.0, Ø2.0, Ø0.9

Tensile Strength(N):   ≥90N(OD:3.0), ≥ 70N (OD:2.0mm)



Bend radius min.:  20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm
