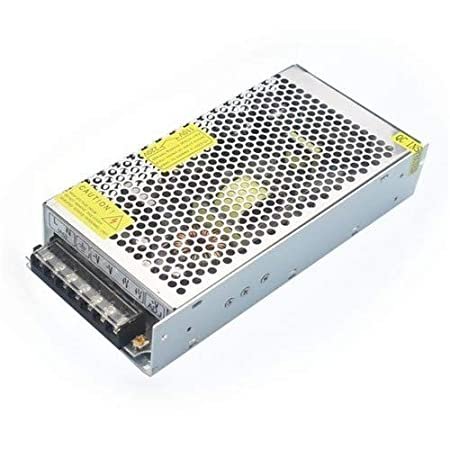

CCTV power supply 12V 10amps Open

KSh 2,000.00KSh 2,500.00 (-20%)

In stock

CCTV power supply 12V 10amps Open

The CCTV power supply 12V 10amps Open has a 240-watt single output. It’s exceptionally reliable, has a switchable universal AC input and a full range output. Featuring electrolytic capacitors and extensive protection circuitry, this unit has the approval of UL and CE and ships only after a 100% full load, full power burn-in test.

  • Brand: PowerSupply1
  • Complies with RoHS directive
  • AC input voltage range: 85-132/ 170-264VAC Selected by Switch
  • Input frequency: 47-63Hz
  • Inrush current: cold start, 20A/115V, 40A/230V
  • Input leakage current: <0.7mA/230V
  • Line regulation (Full Load): <± 0.5%
  • Output voltage adj. range: ± 10%
  • Output overload protection: 110-130% Constant Current, Auto Recovery
  • Output over-voltage protection: 115-150%
  • Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
  • Rise time: 50ms@full load (typical)
  • Hold up time: 20ms@full load (typical)
  • Operating temp.& humidity: -10°C to 50°C (14°F – 122°F), 20%-93%RH (non-condensing)
  • Storage temp.& humidity: -20°C to 85°C (-4°F – 185°F), 20%-93%RH (non-condensing)
